Safeguarding you and your assets

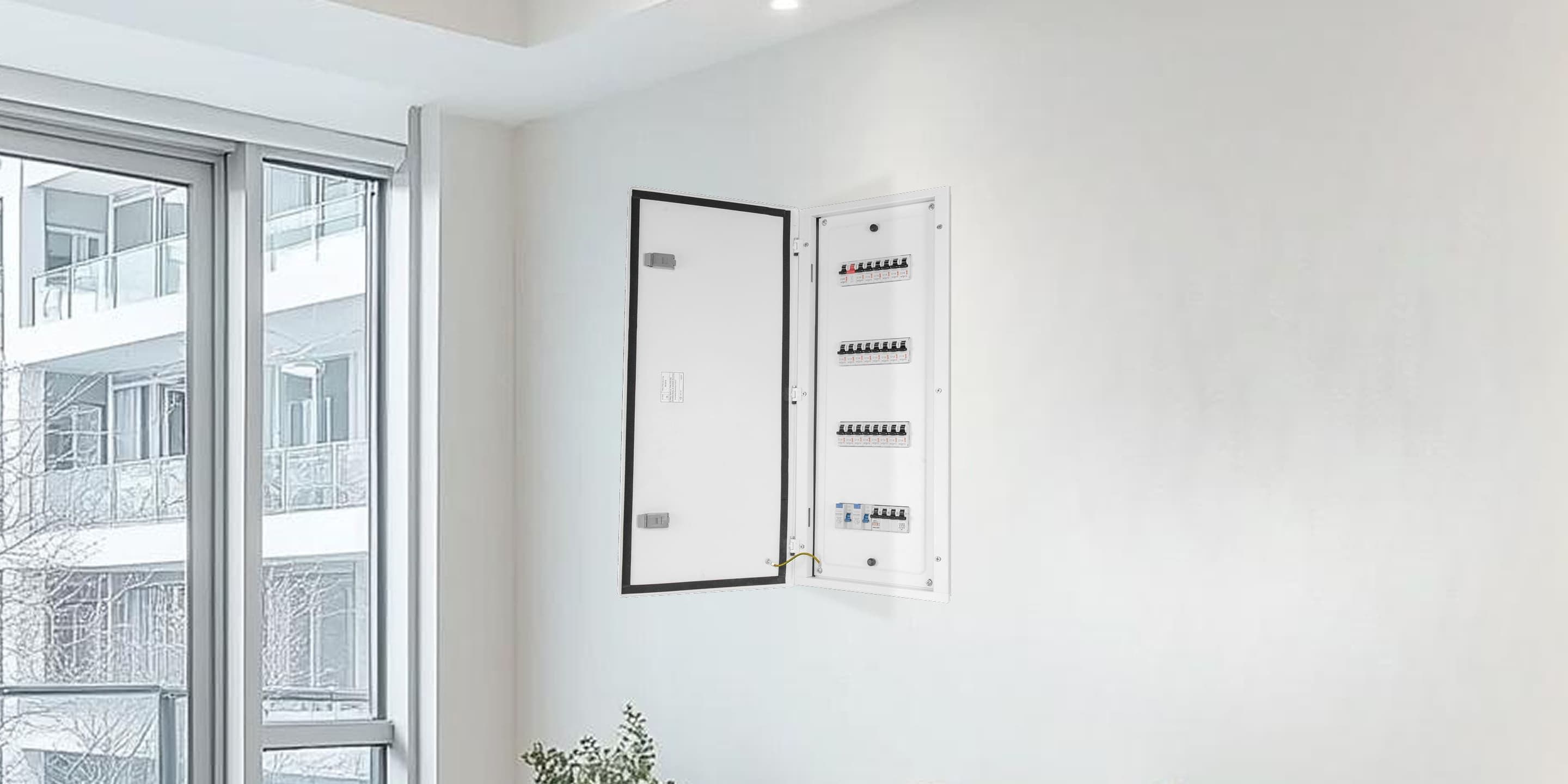

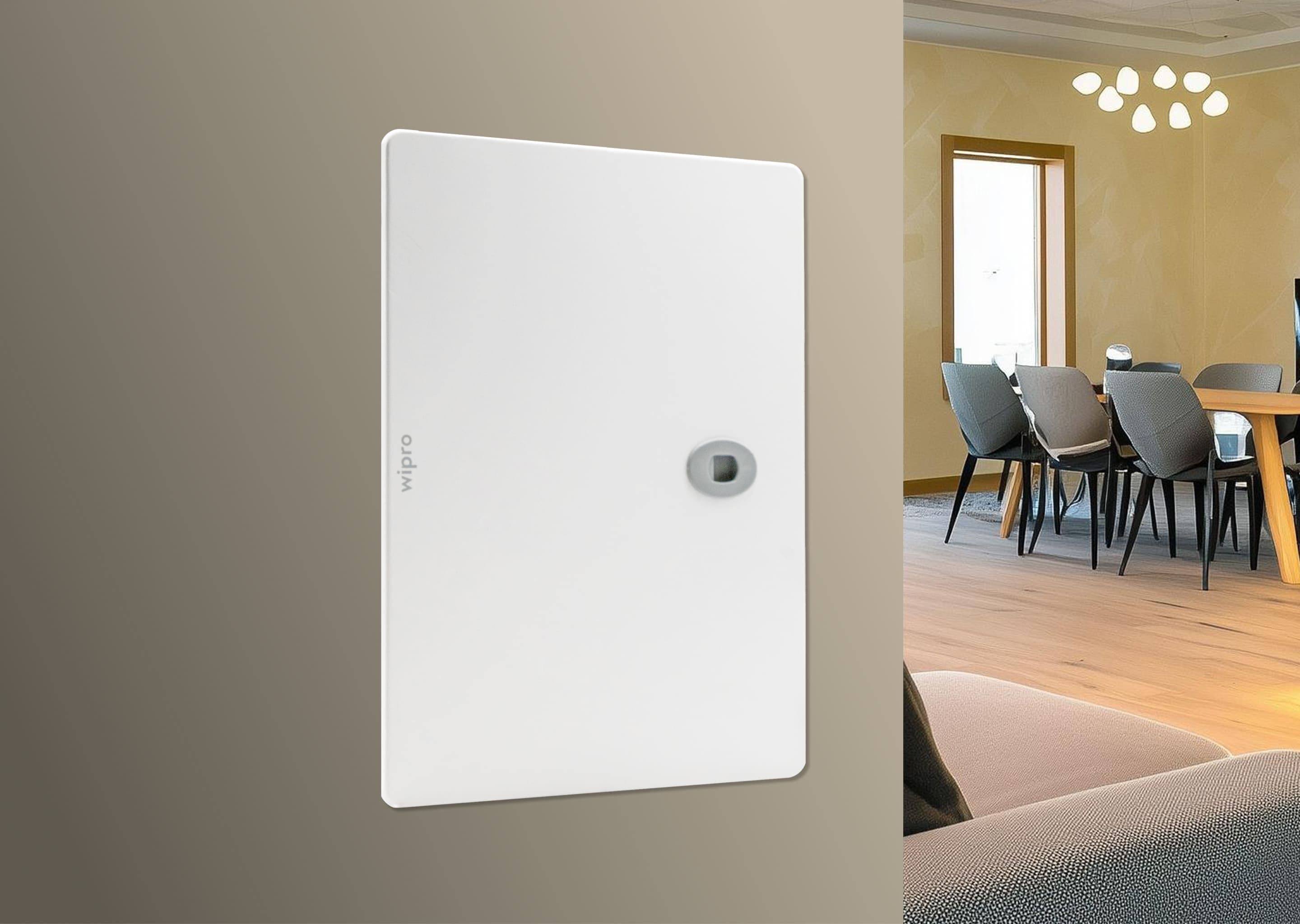

In the rapidly evolving lifestyle, life comes packaged with hi-end gadgets and appliances, where the only constant element is power, and its use at every corner of our homes. Safety therefore becomes more critical as our family and their protection is of utmost importance. Wipro North-West ensures complete peace of mind when it comes to protecting your family and your assets. It offers you safety, reliability and elegance — all in one board — Avancee - Distribution boards.
Product Features
Applications
Check out the multiple spaces that this product can be used at.
Commercial
Residential
Hospitality
Healthcare
Specifications
| TYPE | SPN | TPN |
|---|---|---|
| No of Way | 4,6,8,12 & 16 , SD & DD | 4,6,8,12 , SD & DD |
| Type of Installation | Surface & flush | Surface & flush |
| Door | Reversible ( In Double door only) | Reversible (In Double door only) |
| Removable Gland plates | Top & bottom | Top & bottom |
| Bus bar Rating &Type | 100 Amps , Insulated | 100 Amps , Insulated |
| Incoming capacity (Amp) | Max 63A | Max 63A |
| Outgoing capacity(Amp) | SP MCB, Up to 63A | SP MCB, Up to 63A |
| Voltage Rating (V) | 240V, Single Phase | 240V/415 V, Three Phase |
| Incoming option | DP/SP | FP |
| Neutral Bar terminal capacity | CROSSECTION AREA – 80 MM2 | CROSSECTION AREA – 80 Mm2 |
| Earth Bar terminal capacity | CROSSECTION AREA – 54 MM2 | CROSSECTION AREA – 54 Mm2 |
| IP Protection | IP30 - Single Door, IP43 - Double door | IP30 - Single Door, IP43 - Double door |
| Rated Insulated voltage | 500 V AC | 500 V AC |
| Frequency | 50 Hz | 50 Hz |
| CRCA Sheet- Reference Standard | IS513D | IS513D |
| Wire set rating- Reference Standard | IS 694 | IS 694 |
| Distribution Board - Reference Standard | IS 8623 | IS8623/IEC 61439-3 standards |
