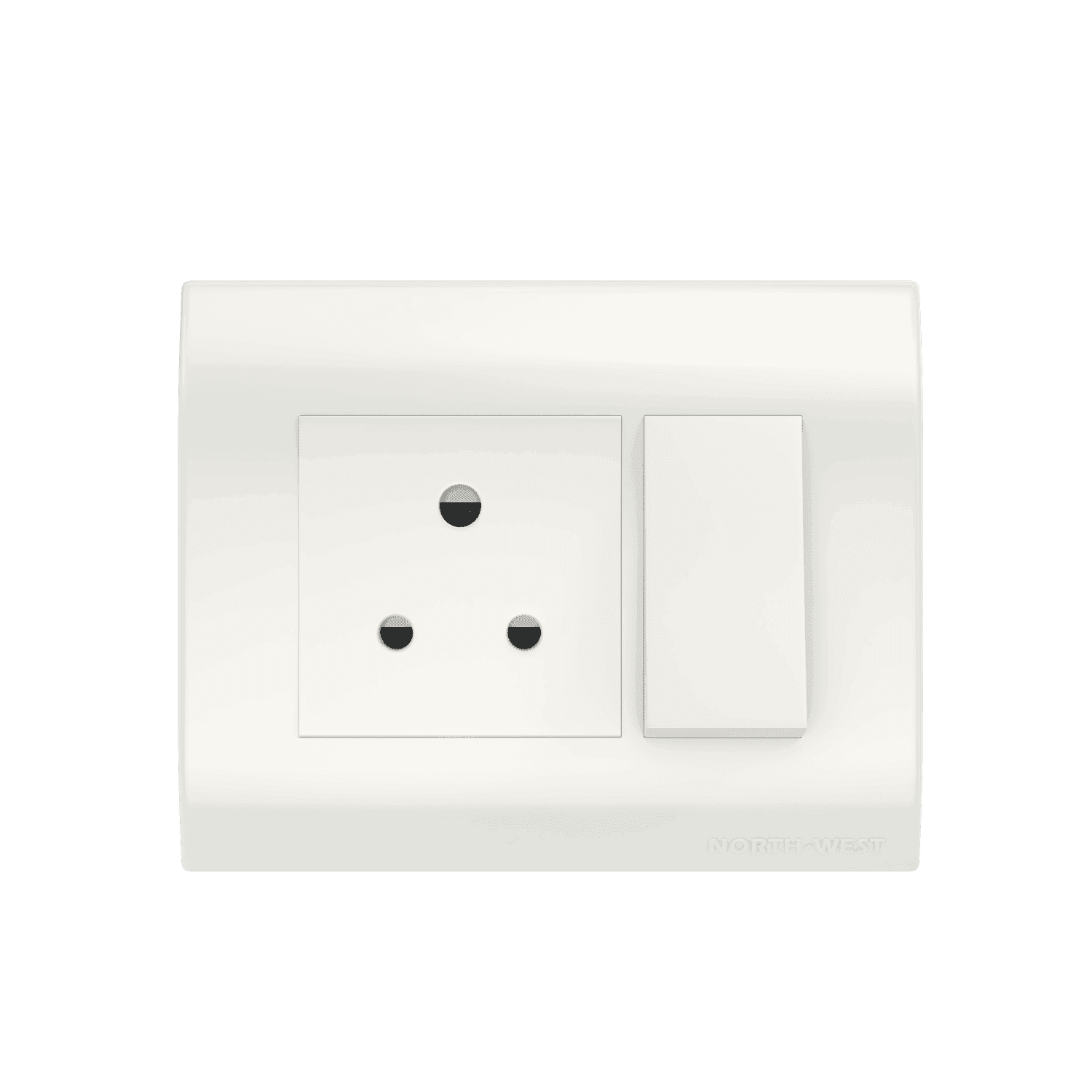

Stylus+ Switches

Stylus+ comes with the benefit of dual fitment mechanism, which facilitates by holding all the modules firmly onto the base frame. This system ensures extra safety for user. Designed with high finish and aesthetics, the Stylus+ range offers plates in Gloss, Matt White and Metal finish.

Product Features

Generic Features Snap Fit Features

Perfectly engineered click-on mechanism initiates rapid installation

Cover plates are designed with special notch on the side to aid fast and easy detachment

Two guiding points on the product act as guides and help in easy alignments

Flame Retardant Plastic: Ensures additional safety

Unique design feature encloses live components, enhancing safety

Contact Carrier | Moving

Heavy Brass contact carrier with silver cadmium contacts
Larger silver contacts ensuring better conductivity
Specially designed moving contact for minimum arcing

Intermediate Bracket

Intermediate bracket made up of high grade fire retardant (943R) which passes 850 deg glow wire test.
Larger silver contacts for better conductivity.
Flat silver cadmium contacts ensuring safety.
Terminals and retainer made up of high grade brass.

Snap

Strong snap design providing strength and firm grip
Provision of wedge to give for additional strength
Front loading and back unloading
Locator ensures snap at appropriate location

Spark Shield

Unique Spark shield preventing arc flowing on rocker, hence safeguarding the user.

Plunger

Plunger, which is always in contact with the live metal, is made made up of Thermoset material which doesn’t melt on heating.

Intermediate Housing

Intermediate housing made up of high quality thermoplastic 943R

Socket Housing & Components

Housing made of High Quality thermoplastic PC 943R grade material. Heavy brass parts for better conductivity. Retainer ring for all poles for firm grip.
